Sturdiness for extreme industrial environments
The high speed chain checkweighers
The protected motors and the open design render the cleaness of the straps and of the tapes very simple and sure, allowing, particularly in the alimentary or pharmaceutical lines, the maximum hygiene.
Scale range up to 6 Kg Division from 1 g Protection IP67-IP69K Cadency up to 600 ppm -
Sturdiness for extreme industrial environments
The high speed chain checkweighers

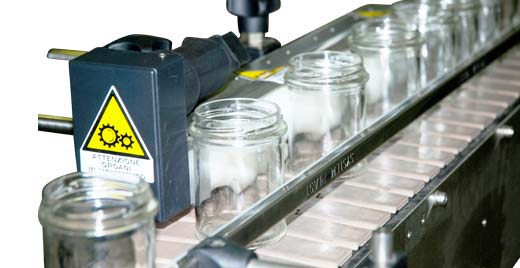

The HSC350 “R” series chain checkweigher combines unrivalled sturdiness, high precision and a design created for use in extreme industrial environments.
Scale range up to 6 Kg Division from 1 g Protection IP67-IP69K Cadency up to 600 ppm -
Sturdiness for extreme industrial environments
The high speed chain checkweighers
Created for use with boxes, cans and bottles in dry or wet environments, the “R” series checkweigher is sturdily built and features a chain conveyor mechanism that achieves the required degree of accuracy at high speed.
Scale range up to 6 Kg Division from 1 g Protection IP67-IP69K Cadency up to 600 ppm -
Sturdiness for extreme industrial environments
The high speed chain checkweighers
Available in numerous configuration, from 1 to 4 conveyors with width from 50 to 230 mm.
Scale range up to 6 Kg Division from 1 g Protection IP67-IP69K Cadency up to 600 ppm
-
Rejection options
(Show more)- High speed pneumatic pusher
- High speed shunter
-
Conveyor belts
(Show more)- Widths (mm): 50 / 110 / 160 / 230
- Lengths (mm): 90 / 150 / 250 / 350
- Chain conveyors
- Extremely resistant chain and conveyor structure
-
Weighing and resolution
(Show more)- Max. weight: 1.500 g / 3.000 g / 6.000 g
- Division "e": 0.5 g / 1 g / 2 g
- up to 600 weighing per minute
-
Active Feedback
(Show more)- Prevent unwanted over and underfills through proactive feedback
- Save product and money with accurate auto tuning
-
Construction and finish
(Show more)- 304 stainless steel construction
- IP67 protection class (optionally IP69K)
- Heights between 500 and 1.400 mm
R series features
-
Motors
(Show more)- Low voltage and current consumption
- 50, 100, 200 W servomotors
- Brush or brushless
- up to 160 meters/min.
-
Feeding and consumption
(Show more)- Supply voltage L1, N, PE, 230 V (+10% / -15%)
- Air supply 3 to 6 bar
- Operating temperature 0 - 40 °C
-
Statistics and reports
(Show more)- Integrated printer: customizable ticket reports of the batches
- STAT350: PC software with full batch traceability
- USB: data collect on USB key
-
Interface and control panel
(Show more)- Keyboard-based with high contrast led display
- 7" HD color touchscreen with start and stop buttons
- 10" Wide color touchscreen with advanced features
- Available in many languages such as English, German, Italian, French, Spanish
- Up to 100 program in memory
- Rapid keys for quick and easy changes
-
Data connections
(Show more)- RS232 serial COM
- Ethernet
- USB data key
