"Tailor-made" solution for your product
Compact, modular, cost-effective

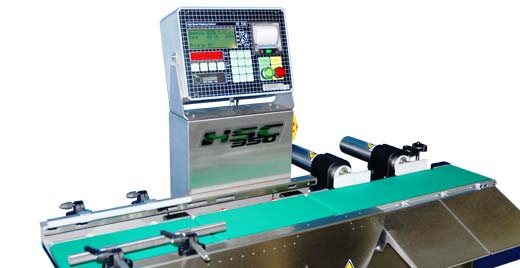

The HSC350 “C” series checkweigher is the compact, modular, cost-effective solution that integrates the quality control line when space is at a premium.
Scale range up to 6 Kg Division from 0.5 g Protection IP 54 Cadency up to 250 ppm -
"Tailor-made" solution for your product
Compact, modular, cost-effective
Sturdy and flexible, it can be easily fitted with a Metal detector plus display and labelling systems.
Scale range up to 6 Kg Division from 0.5 g Protection IP 54 Cadency up to 250 ppm -
"Tailor-made" solution for your product
Compact, modular, cost-effective

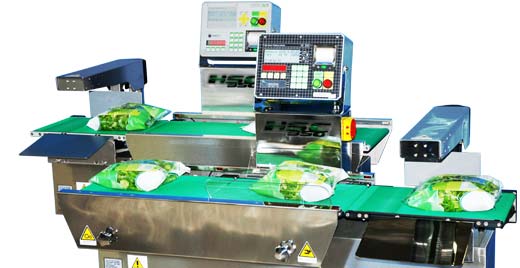

Configuration with fall conveyor rejection for sticky and unpackaged products.
Scale range up to 6 Kg Division from 0.5 g Protection IP 54 Cadency up to 250 ppm -
"Tailor-made" solution for your product
Compact, modular, cost-effective

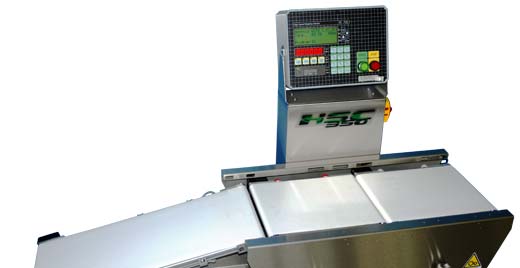

HSC350 serie “C”: The system can be easily sanitized and hygienized thanks to its special shape, featuring flat, easily accessed surfaces.
Scale range up to 6 Kg Division from 0.5 g Protection IP 54 Cadency up to 250 ppm
-
Rejection options
(Show more)- Pneumatic pusher
- Air blast
- Fall conveyor
-
Active Feedback
(Show more)- Prevent unwanted over and underfills through proactive feedback
- Save product and money with accurate auto tuning
-
Construction and finish
(Show more)- 304 stainless steel construction
- IP54 protection class (optionally IP65)
- Heights between 500 and 1.400 mm
-
Conveyor belts
(Show more)- Widths (mm): 90 / 110 / 160 / 220 / 270 / 300 / 360 / 420
- Lengths (mm): 150 / 200 / 250 / 315 / 380 / 450 / 550
- Flat "food" belt
- No tools needed for release
-
Weighing and resolution
(Show more)- Max. weight: 1.500 g / 3.000 g / 6.000 g
- Division "e": 0.5 g / 1 g / 2 g
- up to 250 weighing per minute
C Series features
-
Motors
(Show more)- Low voltage and current consumption
- 50, 100, 200 W servomotors
- Brush or brushless
- up to 160 meters/min.
-
Feeding and consumption
(Show more)- Supply voltage L1, N, PE, 230 V (+10% / -15%)
- Air supply 3 to 6 bar
- Operating temperature 0 - 40 °C
-
Statistics and reports
(Show more)- Integrated printer: customizable ticket reports of the batches
- STAT350: PC software with full batch traceability
- USB: data collect on USB key
-
Interface and control panel
(Show more)- Keyboard-based with high contrast led display
- 7" HD color touchscreen with start and stop buttons
- 10" Wide color touchscreen with advanced features
- Available in many languages such as English, German, Italian, French, Spanish
- Up to 100 program in memory
- Rapid keys for quick and easy changes
-
Data connections
(Show more)- RS232 serial COM
- Ethernet
- USB data key
