Easy maintenance and cleaning
Designed for harsh environment

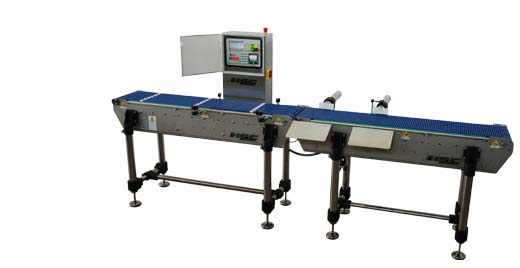

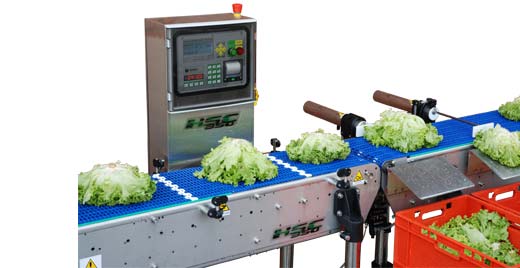

The HSC350 “Q” series checkweigher is designed and realized to work dirty and unpackaged product such as lettuce, cabbage, fennel, broccoli and any kind of fruits and vegetables.
Scale range up to 6 Kg Division from 2 g Protection IP67-IP69K Cadency up to 120 ppm -
Easy maintenance and cleaning
Designed for harsh environment
Compact footprint and simplicity of use: configuration with two channels sorting.
Up to 9 channels sorting according the weight range.
Scale range up to 6 Kg Division from 2 g Protection IP67-IP69K Cadency up to 120 ppm -
Easy maintenance and cleaning
Designed for harsh environment
Sealed and stand-alone control panel with option to remote it up to 9 meters distant from production lines.
Scale range up to 6 Kg Division from 2 g Protection IP67-IP69K Cadency up to 120 ppm
-
Weighing and resolution
(Show more)- Max. weight: 3.000 g / 6.000 g
- Division "e": 2 g / 5 g
- up to 120 weighing per minute
-
Construction and finish
(Show more)- 304 stainless steel construction
- IP68 protection class
- Heights between 500 and 1.400 mm
-
Conveyor belts
(Show more)- Widths (mm): 160 / 210 / 310 / 360
- Lengths (mm): 400 / 500 / 600 / 700 / 800
- Intralox modular conveyors
- Extreme easy clean up
-
Rejection options
(Show more)- Pneumatic pusher
- Air blast
- Pneumatic pusher and air blast
- from 2 up to 9 channels sorting
Q Series features
-
Motors
(Show more)- Low voltage and current consumption
- 50, 100, 200 W servomotors
- Brush or brushless
- up to 160 meters/min.
-
Feeding and consumption
(Show more)- Supply voltage L1, N, PE, 230 V (+10% / -15%)
- Air supply 3 to 6 bar
- Operating temperature 0 - 40 °C
-
Statistics and reports
(Show more)- Integrated printer: customizable ticket reports of the batches
- STAT350: PC software with full batch traceability
- USB: data collect on USB key
-
Interface and control panel
(Show more)- Keyboard-based with high contrast led display
- 7" HD color touchscreen with start and stop buttons
- 10" Wide color touchscreen with advanced features
- Available in many languages such as English, German, Italian, French, Spanish
- Up to 100 program in memory
- Rapid keys for quick and easy changes
-
Data connections
(Show more)- RS232 serial COM
- Ethernet
- USB data key
