Ergonomic, capacious and reliable
The choice for heavy, bulky products
The need to weigh and sort large, heavy products is becoming increasingly more frequent in modern logistics spheres.
Scale range up to 60 Kg Division from 5 g Protection IP 54 Cadency up to 70 ppm -
Ergonomic, capacious and reliable
The choice for heavy, bulky products

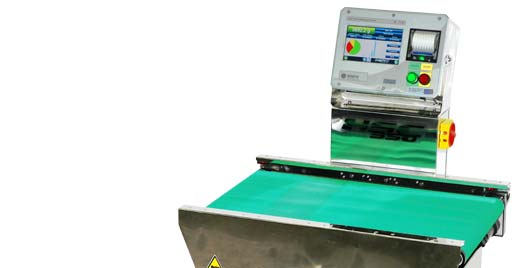

The HSC350 “H” series checkweighers provide an answer to this requirement since they are able to handle and weigh loads of up to 60 kg at high speed.
Scale range up to 60 Kg Division from 5 g Protection IP 54 Cadency up to 70 ppm -
Ergonomic, capacious and reliable
The choice for heavy, bulky products
Available in numerous configuration, from 1 to 4 conveyors with width from 230 to 800 mm.
Scale range up to 60 Kg Division from 5 g Protection IP 54 Cadency up to 70 ppm -
Ergonomic, capacious and reliable
The choice for heavy, bulky products
Serie H checkweigher with IP65 protection.
Configuration with intralox outfeed conveyor and without spacing conveyor belt.
Scale range up to 60 Kg Division from 5 g Protection IP 54 Cadency up to 70 ppm
-
Tough construction
(Show more)- Big rollers with diameter of 50 mm
- Extra powerful engine
- Double support frame improves stability and resistance
-

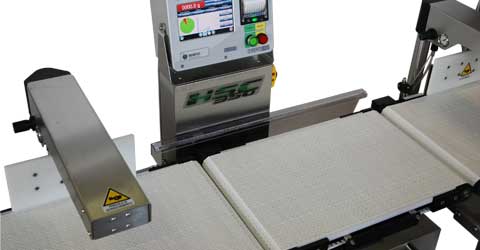

Rejection options
(Show more)- Pneumatic pusher
- Rodless delicated pusher
- Pusher with gravity roller
- Intralox outfeed conveyor to reduce attrition
-
Construction and finish
(Show more)- 304 stainless steel construction
- IP54 protection class (optionally IP65)
- Heights between 500 and 1.400 mm
-
Conveyor belts
(Show more)- Widths (mm): 300 / 360 / 420 / 500 / 600 / 700 / 800
- Lengths (mm): 450 / 550 / 650 / 800 / 1000
- Flat "food" belt or modular intralox conveyor
- No tools needed for release
-
Weighing and resolution
(Show more)- Max. weight: 15.000 g / 30.000 g / 60.000 g
- Division "e": 5 g / 10 g / 20 g
- up to 70 weighing per minute
H Series features
-
Motors
(Show more)- Low voltage and current consumption
- 50, 100, 200 W servomotors
- Brush or brushless
- up to 160 meters/min.
-
Feeding and consumption
(Show more)- Supply voltage L1, N, PE, 230 V (+10% / -15%)
- Air supply 3 to 6 bar
- Operating temperature 0 - 40 °C
-
Statistics and reports
(Show more)- Integrated printer: customizable ticket reports of the batches
- STAT350: PC software with full batch traceability
- USB: data collect on USB key
-
Interface and control panel
(Show more)- Keyboard-based with high contrast led display
- 7" HD color touchscreen with start and stop buttons
- 10" Wide color touchscreen with advanced features
- Available in many languages such as English, German, Italian, French, Spanish
- Up to 100 program in memory
- Rapid keys for quick and easy changes
-
Data connections
(Show more)- RS232 serial COM
- Ethernet
- USB data key
