Designed and built to function in wet environments
Hygiene and sanitizability

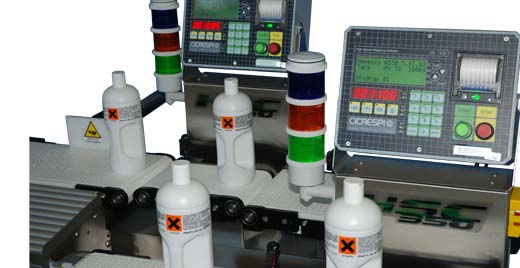

The “P” series HSC350 checkweighers fully comply with the most stringent standards governing hygiene, cleanliness and sanitizability in wet environments.
Scale range up to 15 Kg Division from 1 g Protection IP 65+ Cadency up to 200 ppm -
Designed and built to function in wet environments
Hygiene and sanitizability
Available in numerous configuration, from 2 to 4 conveyors with width from 100 to 530 mm.
Scale range up to 15 Kg Division from 1 g Protection IP 65+ Cadency up to 200 ppm -
Designed and built to function in wet environments
Hygiene and sanitizability
HSC350 serie “P” comprise modular plastic conveyors able to provide the utmost resistance to aggressive substances in the food, manufacturing, chemical and pharmaceutical industries.
Scale range up to 15 Kg Division from 1 g Protection IP 65+ Cadency up to 200 ppm
-
Active Feedback
(Show more)- Prevent unwanted over and underfills through proactive feedback
- Save product and money with accurate auto tuning
-
Rejection options
(Show more)- Pneumatic pusher
- Air blast
- Rodless delicated pusher
-
Construction and finish
(Show more)- 304 stainless steel construction
- IP65 protection class (optionally IP69K)
- Heights between 500 and 1.400 mm
-
Conveyor belts
(Show more)- Widths (mm): 90 / 160 / 220 / 300 / 420 / 530
- Lengths (mm): 150 / 200 / 250 / 350 / 450 / 550
- Intralox modular conveyors
- No tools needed for release
-
Weighing and resolution
(Show more)- Max. weight: 3.000 g / 6.000 g / 15 Kg
- Division "e": 1 g / 2 g / 5 g
- up to 200 weighing per minute
P Series features
-
Motors
(Show more)- Low voltage and current consumption
- 50, 100, 200 W servomotors
- Brush or brushless
- up to 160 meters/min.
-
Feeding and consumption
(Show more)- Supply voltage L1, N, PE, 230 V (+10% / -15%)
- Air supply 3 to 6 bar
- Operating temperature 0 - 40 °C
-
Statistics and reports
(Show more)- Integrated printer: customizable ticket reports of the batches
- STAT350: PC software with full batch traceability
- USB: data collect on USB key
-
Interface and control panel
(Show more)- Keyboard-based with high contrast led display
- 7" HD color touchscreen with start and stop buttons
- 10" Wide color touchscreen with advanced features
- Available in many languages such as English, German, Italian, French, Spanish
- Up to 100 program in memory
- Rapid keys for quick and easy changes
-
Data connections
(Show more)- RS232 serial COM
- Ethernet
- USB data key
