via G. Benassi, 31 - 41122 Modena (Italy) info@hsc350.com +39 059314548
-

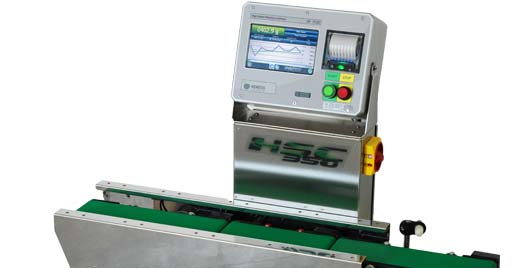

The HSC350 checkweigher for small packages
GMP regulated for the pharma industry
The “S” series includes modular checkweighers that meet the current requirements of the pharmaceutical industry, most especially the GMP regulations.
Scale range up to 600 g Division from 0.1 g Protection IP 54 Cadency up to 400 ppm -

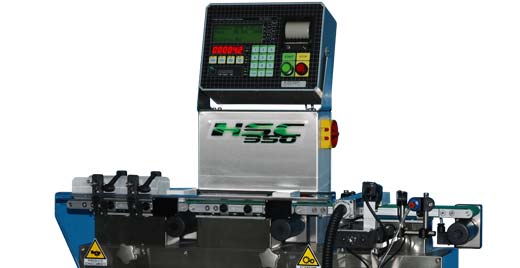

The HSC350 checkweigher for small packages
GMP regulated for the pharma industry

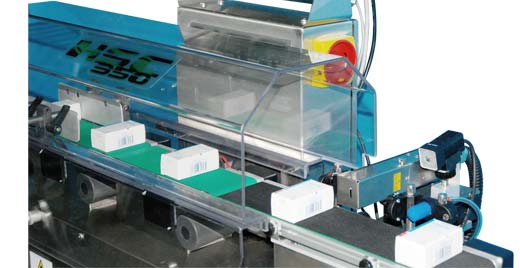

Configuration with high speed ink-jet printer and vision system to detect leak in closure and inside print.
Scale range up to 600 g Division from 0.1 g Protection IP 54 Cadency up to 400 ppm -
The HSC350 checkweigher for small packages
GMP regulated for the pharma industry
S Series provide a comprehensive answer to demands of users in pharmaceutical sphere and other industries, where speed and accuracy are a must.
Scale range up to 600 g Division from 0.1 g Protection IP 54 Cadency up to 400 ppm -
The HSC350 checkweigher for small packages
GMP regulated for the pharma industry
Available in numerous configuration, from 1 to 3 conveyors with width from 60 to 270 mm.
Scale range up to 600 g Division from 0.1 g Protection IP 54 Cadency up to 400 ppm
-
Active Feedback
(Show more)- Prevent unwanted over and underfills through proactive feedback
- Save product and money with accurate auto tuning
-
Conveyor belts
(Show more)- Widths (mm): 60 / 90 / 110 / 160
- Lengths (mm): 100 / 150 / 200 / 250 / 315
- Flat "food" belt
- No tools needed for release
-
Construction and finish
(Show more)- 304 stainless steel construction
- IP54 protection class
- Heights between 500 and 1.400 mm
-
Weighing and resolution
(Show more)- Max. weight: 300 g / 600 g / 1.500 g
- Division "e": 0.1 g / 0.2 g / 0.5 g
- up to 400 weighing per minute
-

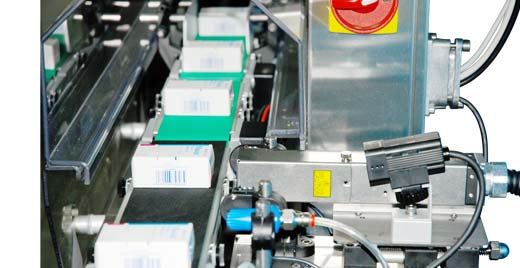

Rejection options
(Show more)- Pneumatic pusher
- Air blast
S Series features
-
Motors
(Show more)- Low voltage and current consumption
- 50, 100, 200 W servomotors
- Brush or brushless
- up to 160 meters/min.
-
Feeding and consumption
(Show more)- Supply voltage L1, N, PE, 230 V (+10% / -15%)
- Air supply 3 to 6 bar
- Operating temperature 0 - 40 °C
-
Statistics and reports
(Show more)- Integrated printer: customizable ticket reports of the batches
- STAT350: PC software with full batch traceability
- USB: data collect on USB key
-
Interface and control panel
(Show more)- Keyboard-based with high contrast led display
- 7" HD color touchscreen with start and stop buttons
- 10" Wide color touchscreen with advanced features
- Available in many languages such as English, German, Italian, French, Spanish
- Up to 100 program in memory
- Rapid keys for quick and easy changes
-
Data connections
(Show more)- RS232 serial COM
- Ethernet
- USB data key
