Up to three channels sort
Checkweighing and sorting

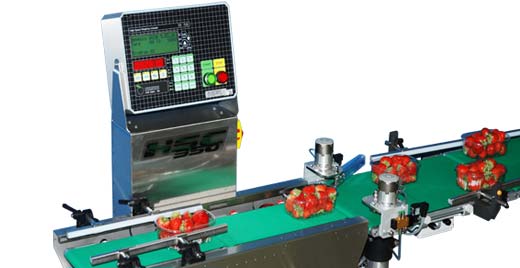

The HSC350 “Z” provides an integrate sorting to divide products in three channels according their weight: complying, underweight and overweight.
Scale range up to 3 Kg Division from 0.5 g Protection IP 54 Cadency up to 120 ppm -
Up to three channels sort
Checkweighing and sorting
The flip ejector works quickly but softly: no damage is done to product and operators can easily correct the weight of punnets.
Scale range up to 3 Kg Division from 0.5 g Protection IP 54 Cadency up to 120 ppm -
Up to three channels sort
Checkweighing and sorting
Configuration with modular plastic conveyors for a optimal dynamic of transport and sorting of cans and jars.
Scale range up to 3 Kg Division from 0.5 g Protection IP 54 Cadency up to 120 ppm
-
Rejection options
(Show more)- Pneumatic pusher
- Air blast
- Two channels flip sorter
- Three channels flip sorter
-
Weighing and resolution
(Show more)- Max. weight: 1.500 g / 3.000 g
- Division "e": 1 g / 2 g
- up to 120 weighing per minute
-
Construction and finish
(Show more)- 304 stainless steel construction
- IP54 protection class (optionally IP65)
- Heights between 500 and 1.400 mm
-
Conveyor belts
(Show more)- Widths (mm): 90 / 110 / 160 / 220
- Lengths (mm): 150 / 200 / 250 / 315 / 380
- Flat "food" belt
- No tools needed for release
-
Active Feedback
(Show more)- Prevent unwanted over and underfills through proactive feedback
- Save product and money with accurate auto tuning
Z Series features
-
Motors
(Show more)- Low voltage and current consumption
- 50, 100, 200 W servomotors
- Brush or brushless
- up to 160 meters/min.
-
Feeding and consumption
(Show more)- Supply voltage L1, N, PE, 230 V (+10% / -15%)
- Air supply 3 to 6 bar
- Operating temperature 0 - 40 °C
-
Statistics and reports
(Show more)- Integrated printer: customizable ticket reports of the batches
- STAT350: PC software with full batch traceability
- USB: data collect on USB key
-
Interface and control panel
(Show more)- Keyboard-based with high contrast led display
- 7" HD color touchscreen with start and stop buttons
- 10" Wide color touchscreen with advanced features
- Available in many languages such as English, German, Italian, French, Spanish
- Up to 100 program in memory
- Rapid keys for quick and easy changes
-
Data connections
(Show more)- RS232 serial COM
- Ethernet
- USB data key
